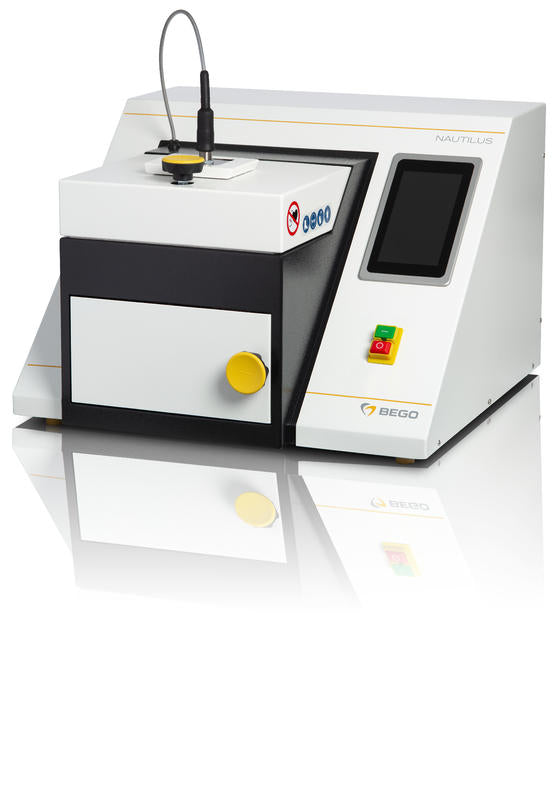

Nautilus® CC plus Vacuum Pressure Casting Unit - BEGO
Regular price$46,320.00
/
New:Network connection via LAN or W-LAN enables access to the integrated casting log archives (up to 1,000 casting logs)
New: The connection via the service portal* my.Bego.com enables direct remote diagnosis of the device
New:Large 7“ touch display with intuitive menu navigation for convenient and easy operation
Casting point recognition ensures that the cast objects are filled at the temperature recommended by the alloy manufacturer
High-performance induction heating guarantees short melting cycles, minimises oxidation and thus facilitates subsequent finishing
Integrated power cooling provides for over 50 casts in a row, even with high ambient temperatures with moulds made of phosphatebonded investment materials
Integrated cooling saves water and helps to protect the environment
Suitable for all commercially available precious metal and nonprecious alloys (excluding titanium)
Compact dimensions and design give the Nautilus® CC plus a very small footprint
Eco mode switches off all unnecessary components in idle mode and reduces operating costs
Item name
Nautilus® CC plus
Nominal voltage
230 VAC, 50/60 Hz
Air consumption
100 l/min
Product description
Vacuum pressure-casting machine with automatic casting
Depth
670 mm
Heigth with FOC
650 mm
Height
420 mm
Width
600 mm
Content/amount
1 piece
Net weigth
64 kg
Current consumption
16 A at rated voltage
Compressed air connection
at least 5 bar (0.5 [MPa]), connection thread 1/4"
